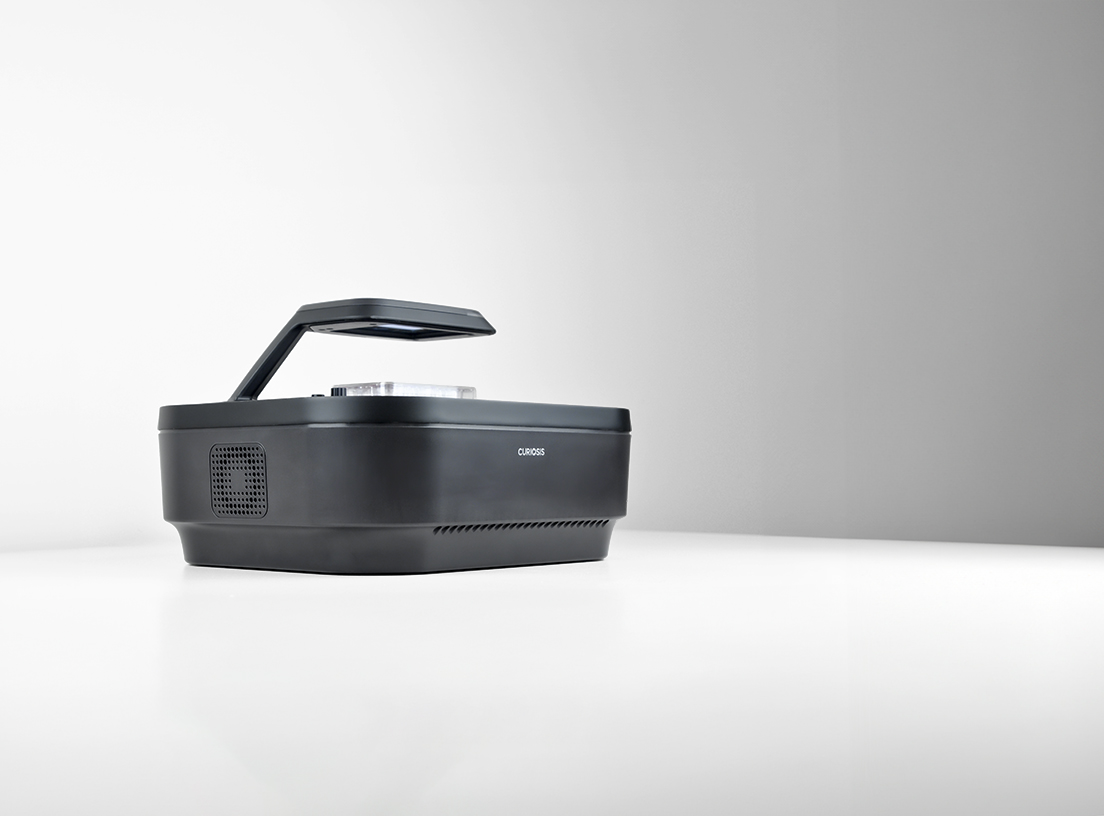

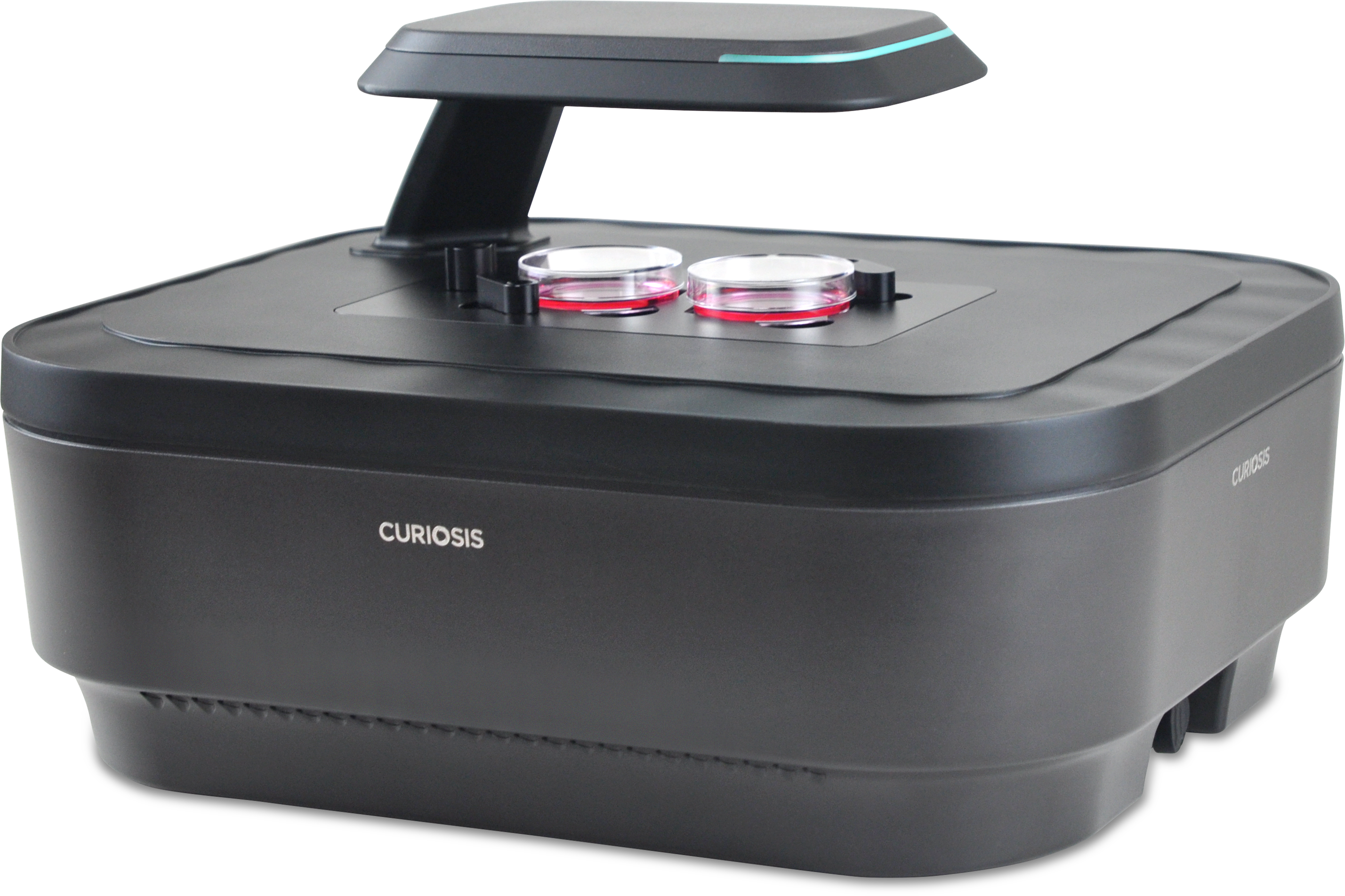

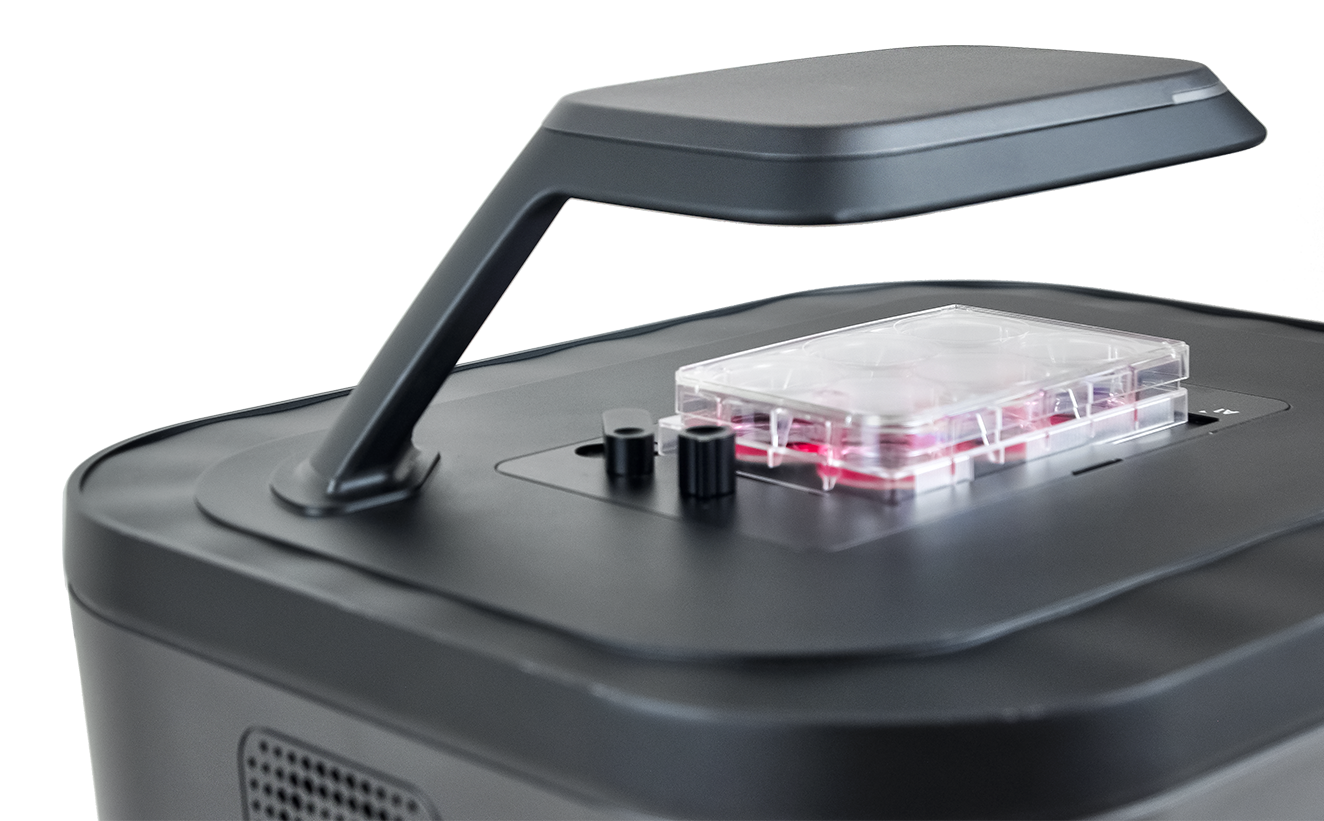

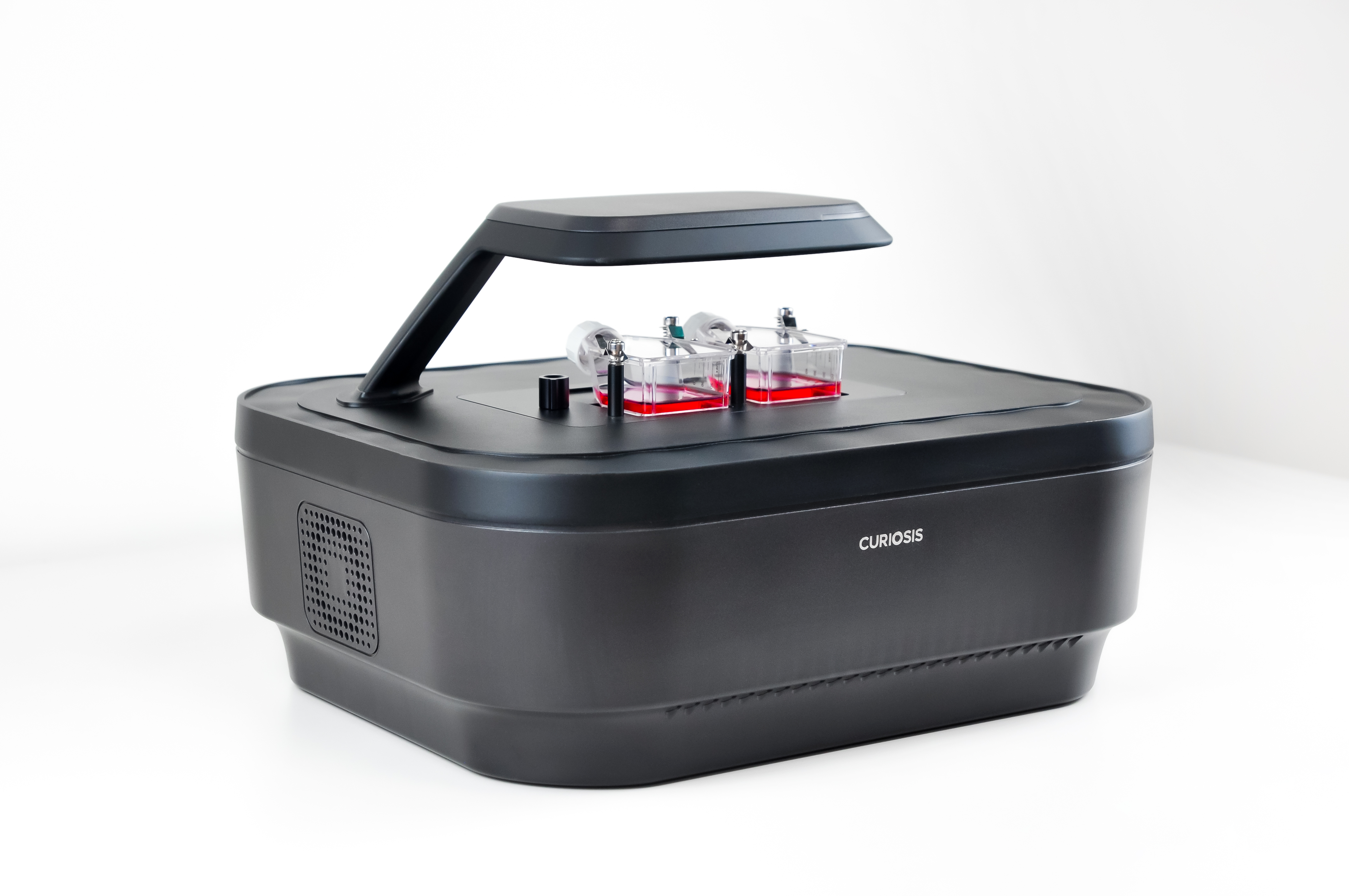

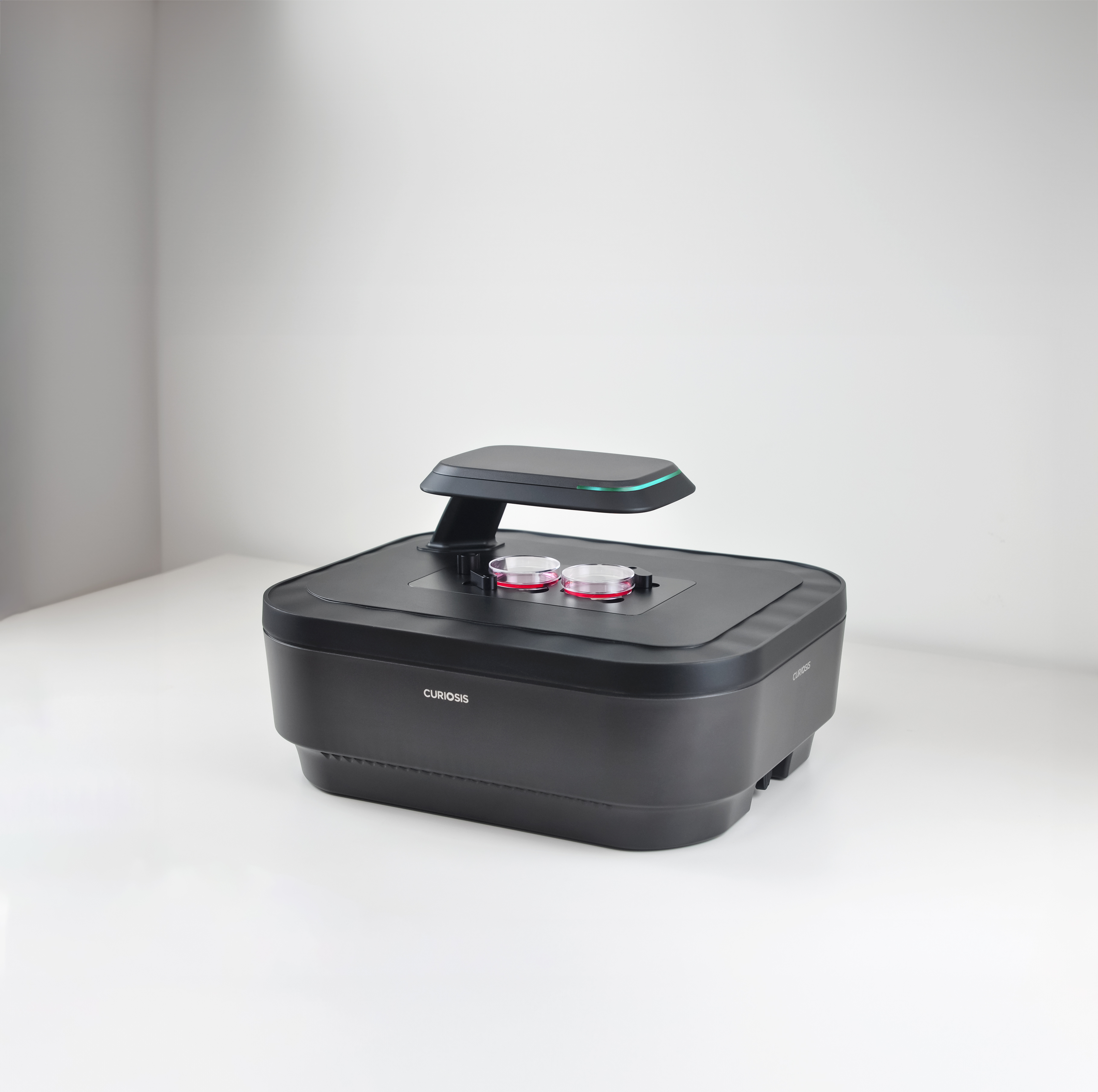

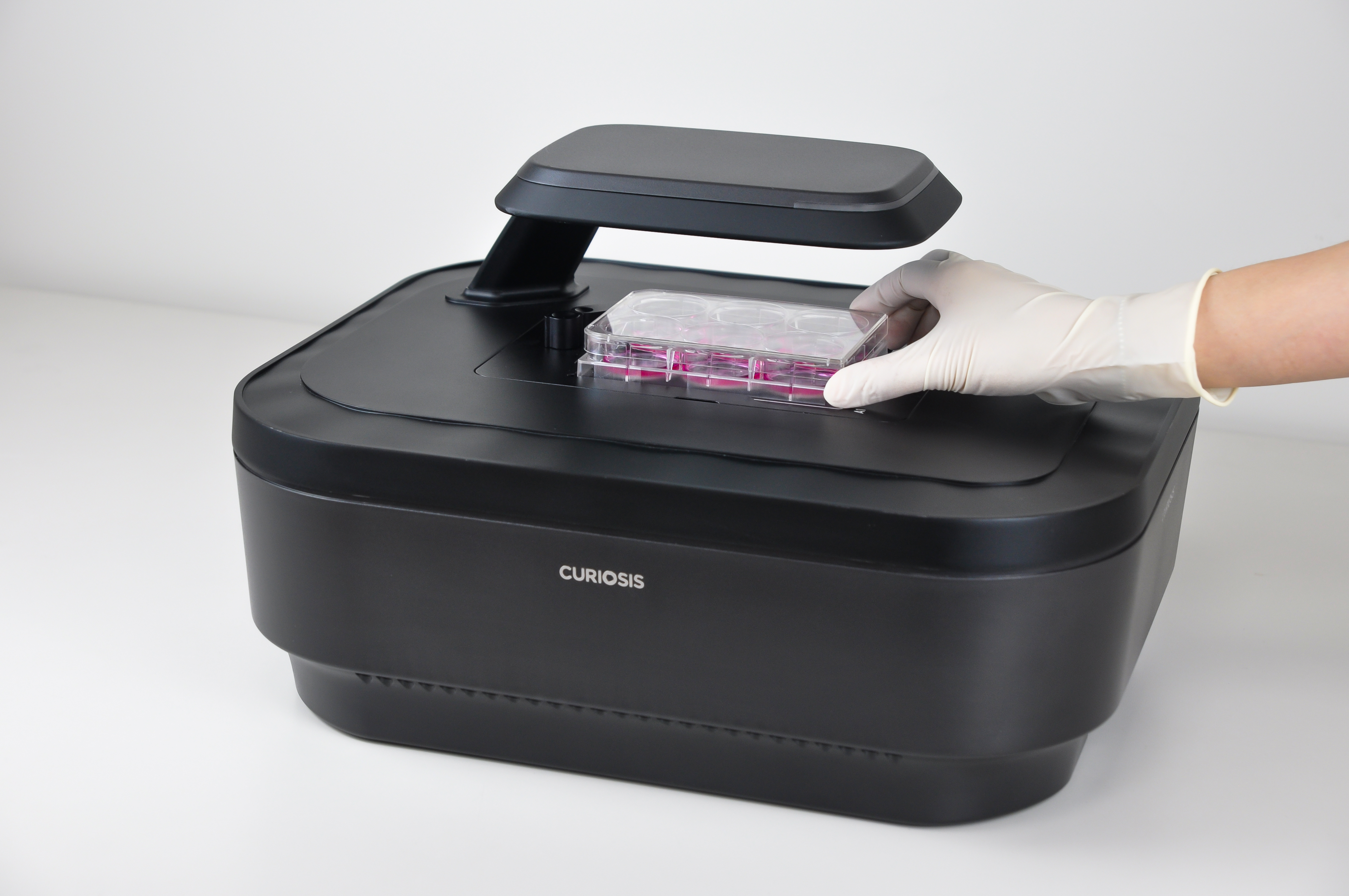

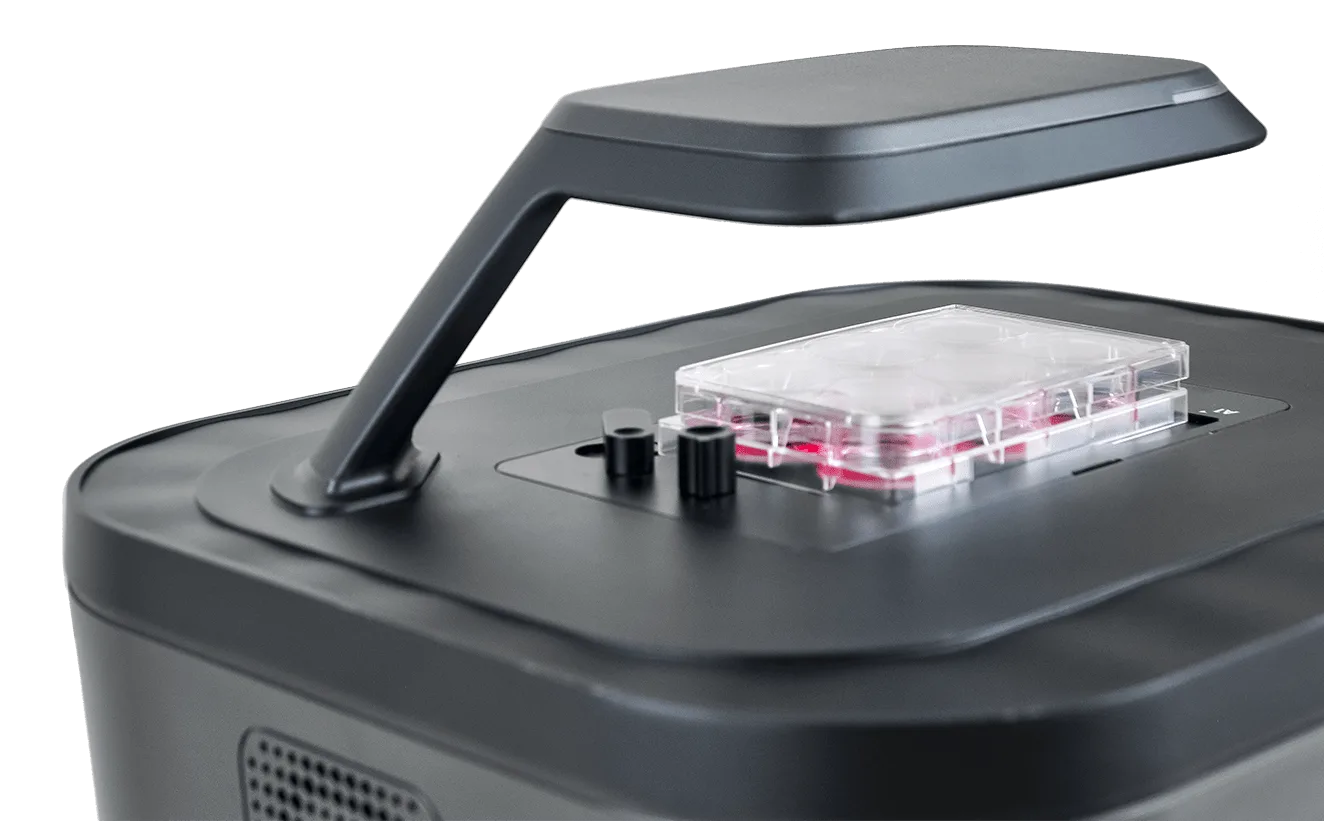

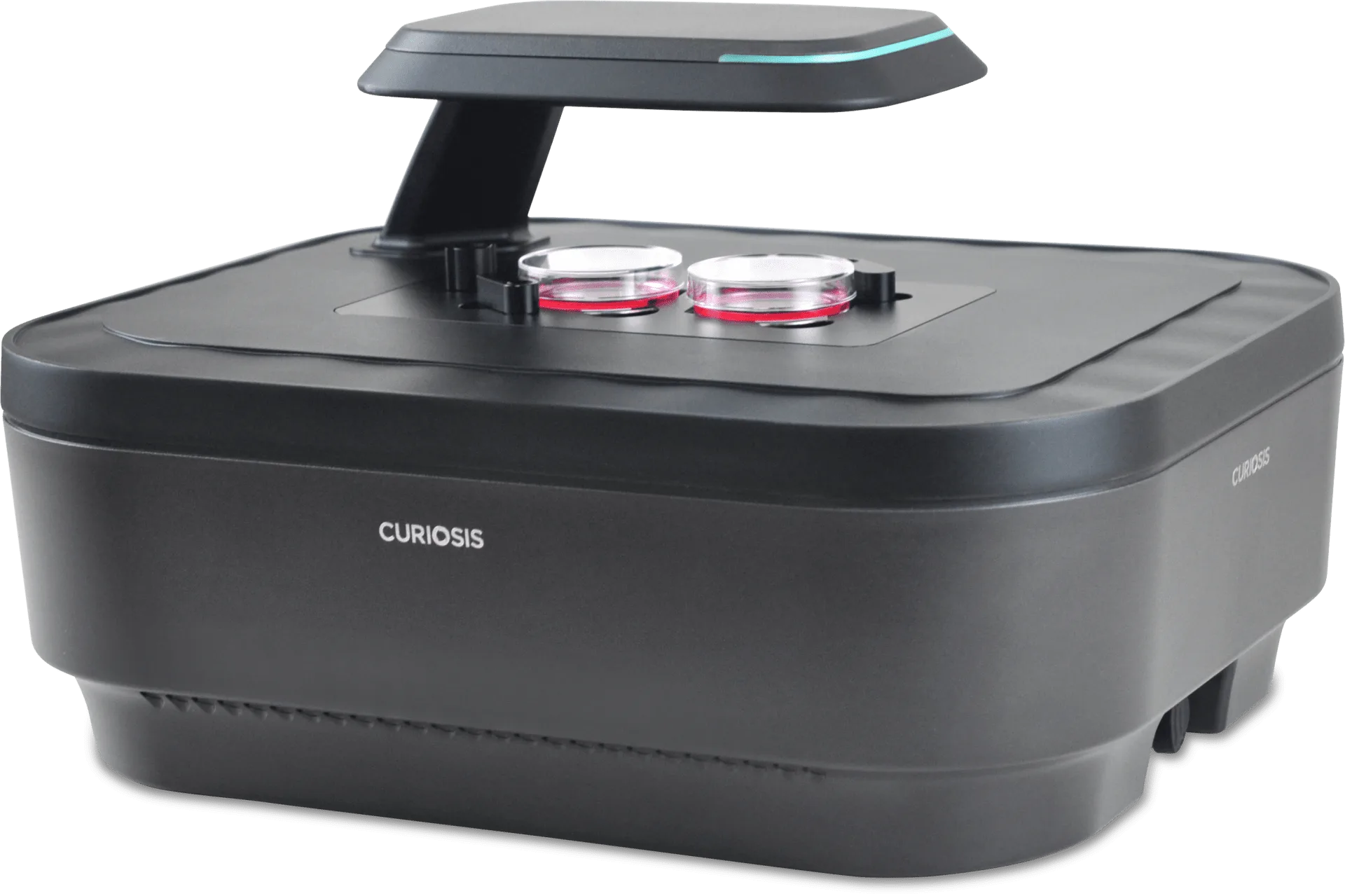

Celloger® Pro
Celloger® Pro is an advanced live-cell imaging system combining brightfield and dual-color fluorescence microscopy for comprehensive, real-time cell monitoring inside standard CO₂ incubators. Designed to support dynamic studies of cellular processes, Celloger® Pro offers simultaneous multi-marker visualization, high-resolution time-lapse imaging, and flexible vessel compatibility, all while preserving optimal culture conditions.
Equipped with interchangeable objective lenses, automated multi-position scanning, and user-friendly software, Celloger® Pro enables researchers to capture detailed cellular events across multiple locations with precision and efficiency.
Features
- Real-time monitoring inside incubator
Continuous live-cell imaging directly inside standard incubators without disturbing culture conditions. - Dual fluorescence microscopy
Simultaneous green and red fluorescence imaging combined with brightfield for multi-marker visualization. - Interchangeable objective lenses
User-selectable 2X, 4X, and 10X lenses provide flexibility for various magnification needs. - Multi-position imaging
Fully motorized camera allows automateda image acquisition across multiple positions without moving the sample. - Wide vessel compatibility
Supports various cell culture formats including 96-well plates, flasks, dishes, and slides via interchangeable holders. - Time-lapse video creation
Captures scheduled image sequences that can be easily converted into time-lapse videos. - Intuitive software interface
User-friendly tools for scheduling, imaging, and basic analysis.
Specifications
| Imaging modes | Brightfield, Dual fluorescence (Green & Red) |
|---|---|
| Objective Lens | 2X, 4X, 10X (User-interchangeable) |
| Fluorescence | Green : EX (470/40), EM (540/50) Red : EX (562/40), EM (641/75) |
| Stage | Fully motorized XYZ (Fixed stage, camera moving type) |
| Camera | High sensitivity 5.0 MP CMOS |
| Imaging positions | Multiple |
| Field of view | 2X (2.02 x 1.49 mm) / 4X (1.41 x 1.05 mm) / 10X (0.70 x 0.52 mm) |
| Focus | Autofocus, Manual focus |
| Imaging methods | Single/multicolor, stitching, stacking, time-lapse, real-time recording |
| Included software | Scan App, Analysis App |
| Dimensions (H x W x L) | 250 x 338 x 412 mm |
| Weight | 9.6 kg |
| Culture vessels | Well plate up to 96-well, flask, dish, slide |
| File export format | TIFF, AVI (JPEG, PNG) |
| Operating environment | 10~40℃, 20~95% humidity |
| Power requirement | 100-240V, ~50/60Hz |
| O/S required | Windows 10 and above |
| Incubator specification | Above 200L (recommended) |
