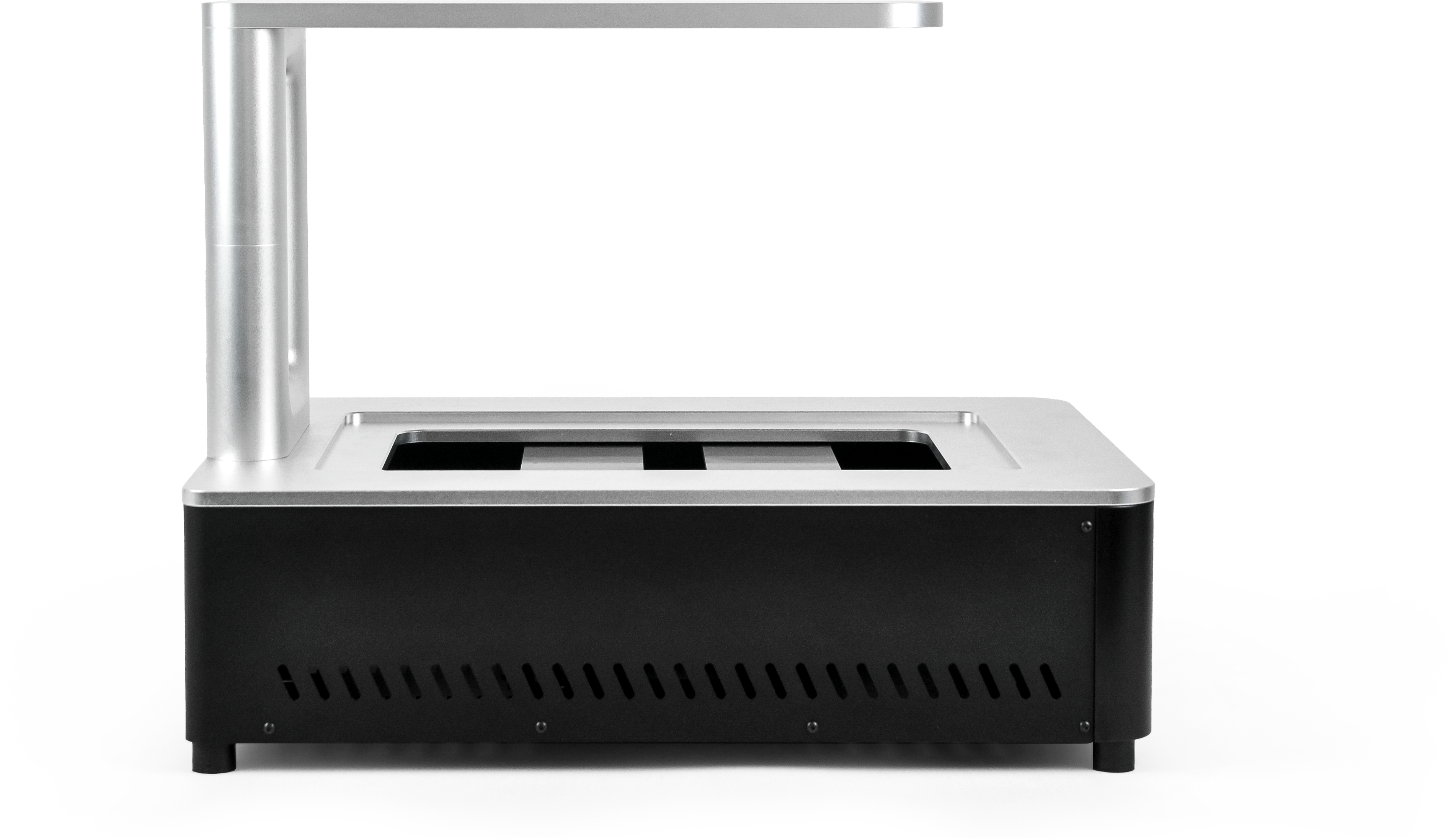

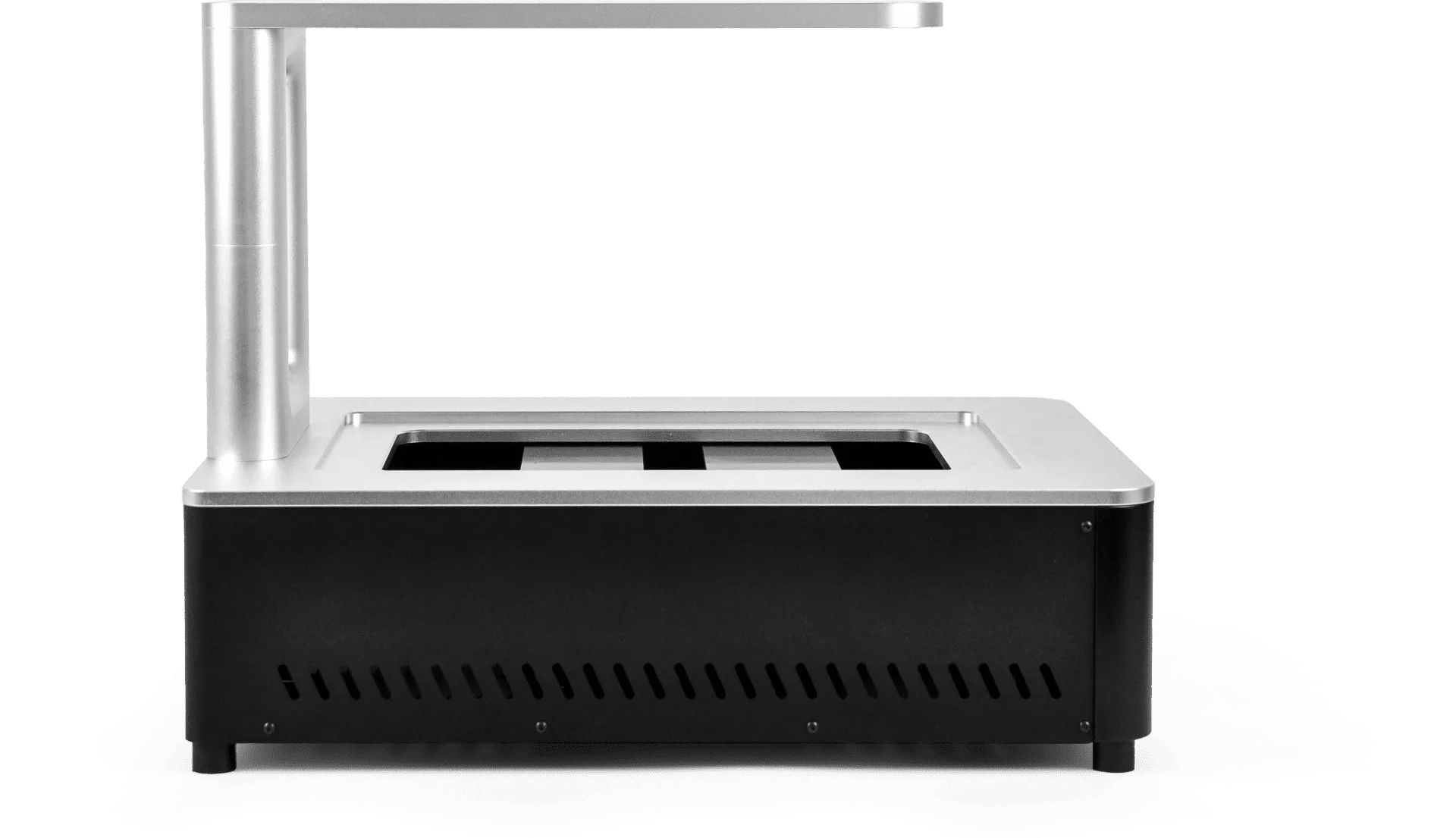

Celloger® Stack

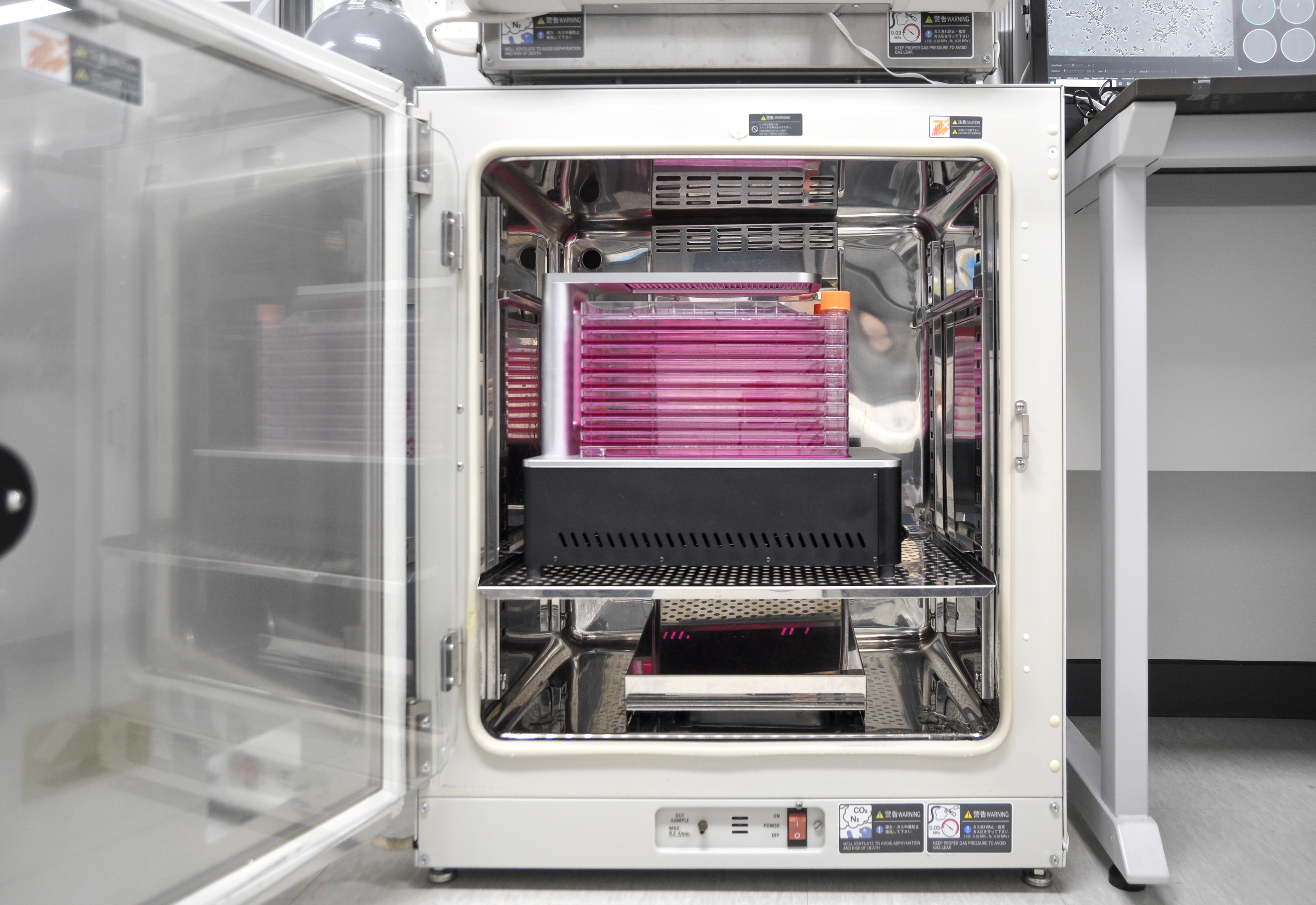

Celloger® Stack is a specialized live-cell imaging platform designed for continuous monitoring of large-scale cell cultures grown in multi-layer vessels inside standard CO₂ incubators. Its motorized camera system enables real-time imaging across multiple positions and layers without disturbing the culture environment, supporting reproducible cell expansion, process optimization, and harvest timing.
Equipped with advanced multi-position scanning, autofocusing, and time-lapse capabilities, Celloger® Stack allows researchers to closely monitor confluency development and identify the optimal time for cell harvesting during mass cell culture processes.
Features
- Real-time monitoring inside incubator
Enables continuous live-cell observation without removing vessels, minimizing contamination risk. - Multi-layer vessel observation

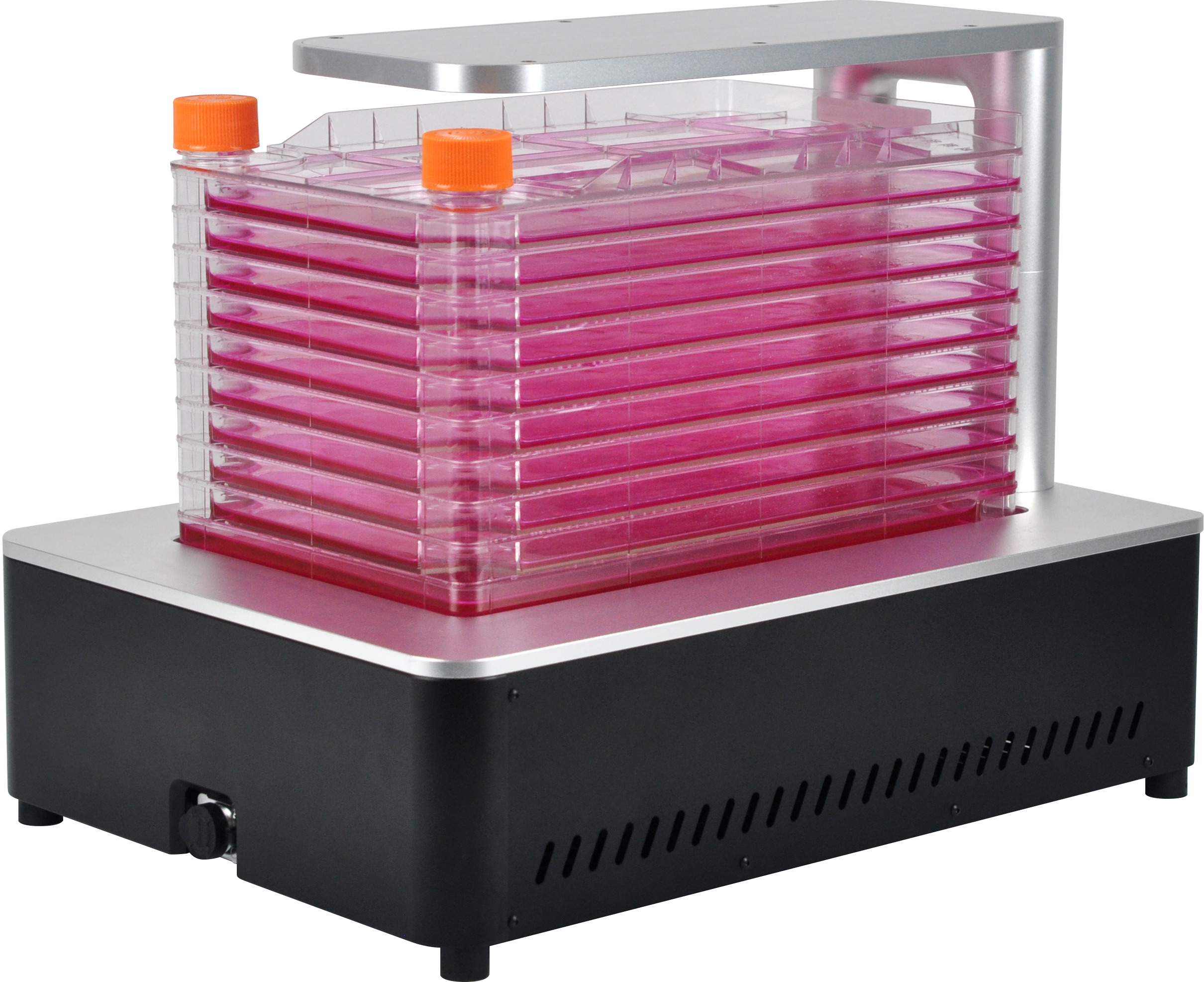

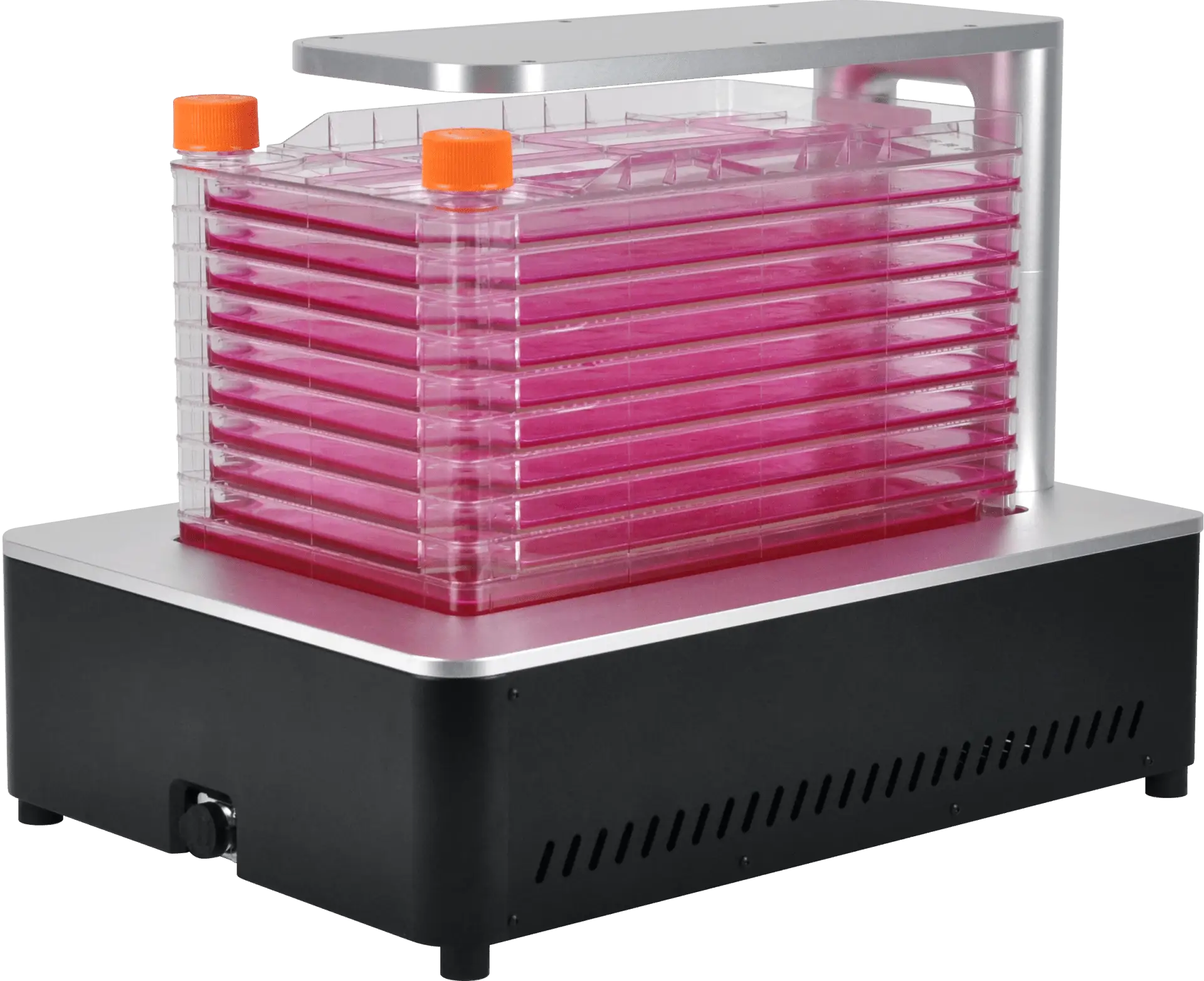

Supports monitoring of multi-layer chambers up to 10 layers (image acquired from bottom layer). - Optimized for mass cell culture
Designed for consistent and reproducible monitoring during large-scale cell culture and production workflows. - Multi-position imaging
Fully motorized camera system allows imaging across multiple positions within a wide scanning area. - Interchangeable vessel holders
Supports different vessel types; standard holder for Cellstack vessels, with optional customized holders for other multi-layer dishes and flasks. - Time-lapse video creation
Captured images can be easily converted into time-lapse videos with one click. - Autofocusing
Reliable and fast autofocusing ensures consistently sharp imaging across all positions. - Confluency tracking for harvest timing
Facilitates monitoring of confluency levels to help determine the optimal time for cell harvesting (confluency alarm feature under development).
Specifications
| Dimensions | 350 x 330 x 450 mm |
|---|---|
| Weight | 15kg |
| Objective Lens | 2X |
| Imaging mode | Bright-field |
| Imaging positions | Multiple |
| Stage | Motorized XYZ (Camera moving) |
| Camera | 5MP CMOS |
| Field of view | 2.53 x 1.90 mm |
| File export format | TIFF, AVI |
| O/S required | Window 10 |
| Storage | 1TB (recommended) |
| Operating environment | 10~40℃, 20~95% humidity |
| Vessel types | Multi-layer chamber up to 10 layers |
| 21 CFR Part 11 | Available (optional) |
