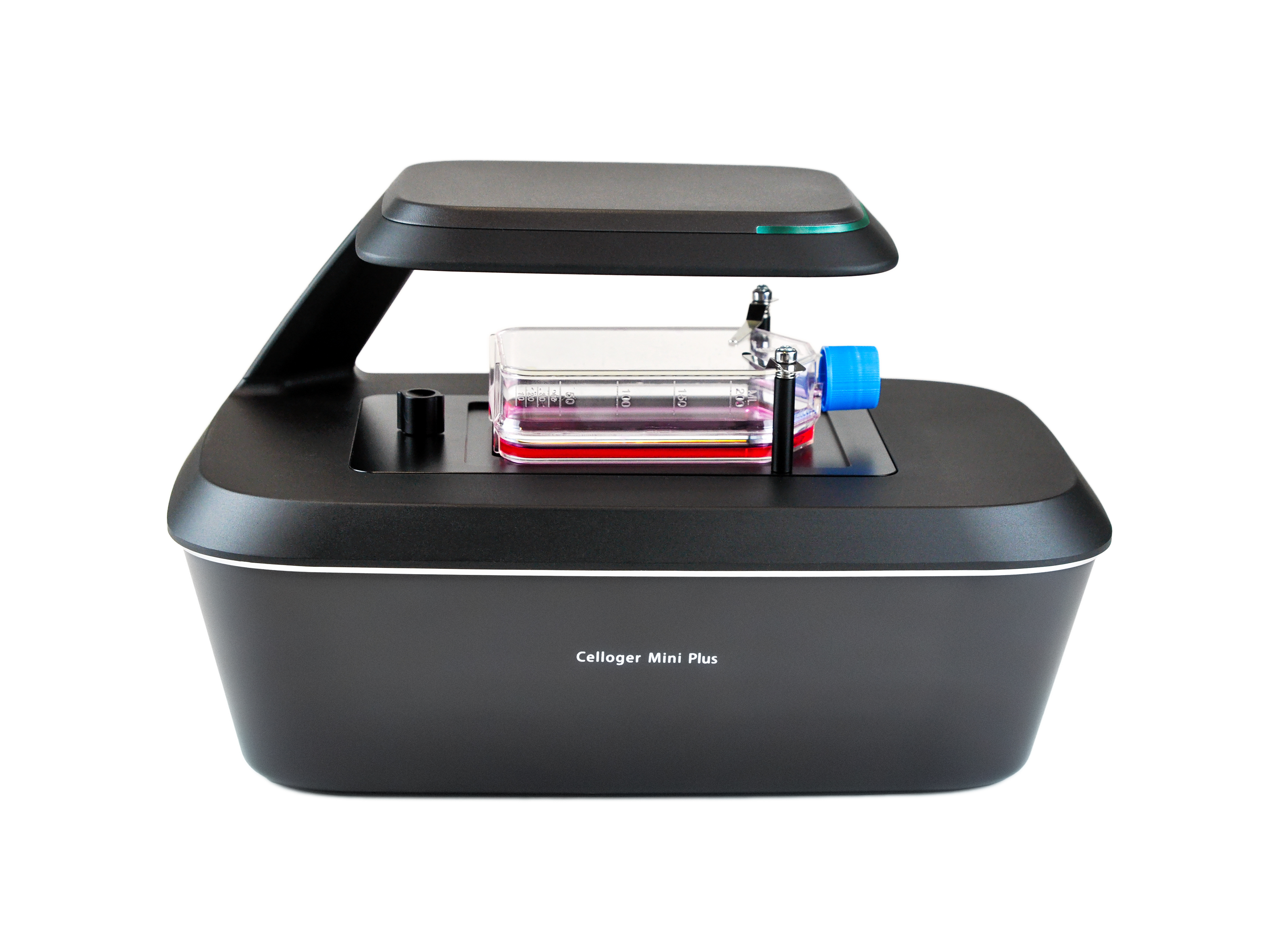

Celloger® Mini Plus (Bright Field + Red Fluorescence, 10X)

Celloger® Mini Plus is an automated live-cell imaging platform designed for continuous monitoring and high-quality imaging directly inside standard CO₂ incubators. Combining brightfield and advanced fluorescence microscopy, the system enables real-time multi-position imaging while preserving optimal culture conditions. Its compact design, motorized camera system, and user-friendly software make it ideal for a variety of live-cell research applications.

The system allows researchers to perform multi-well scanning, Z-stack imaging, image stitching, and time-lapse video capture, providing flexible data acquisition for cell proliferation, morphology studies, and growth analysis.

Features

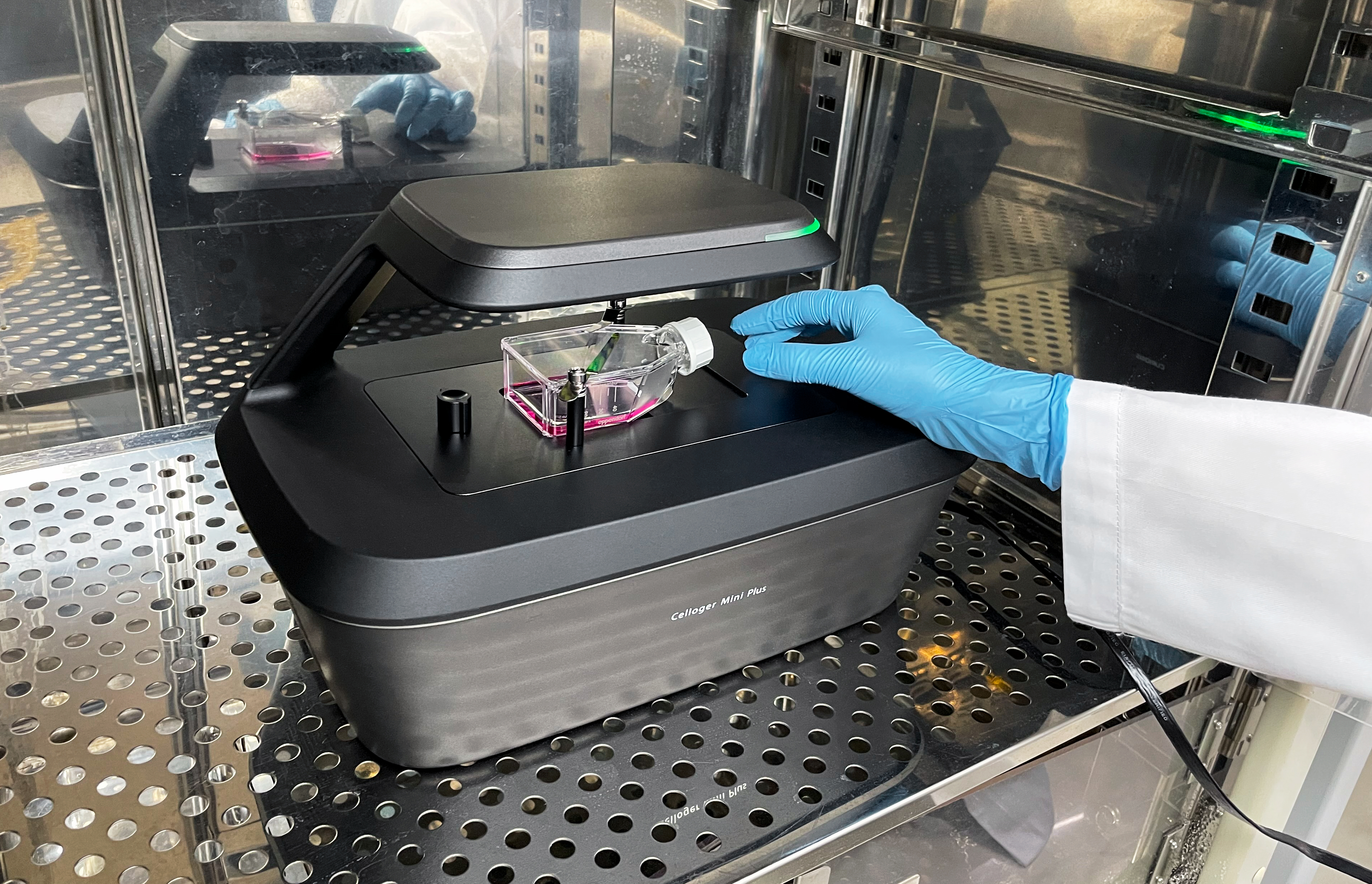

Real-time monitoring inside incubator
Enables continuous live-cell imaging without removing samples, minimizing contamination risks.

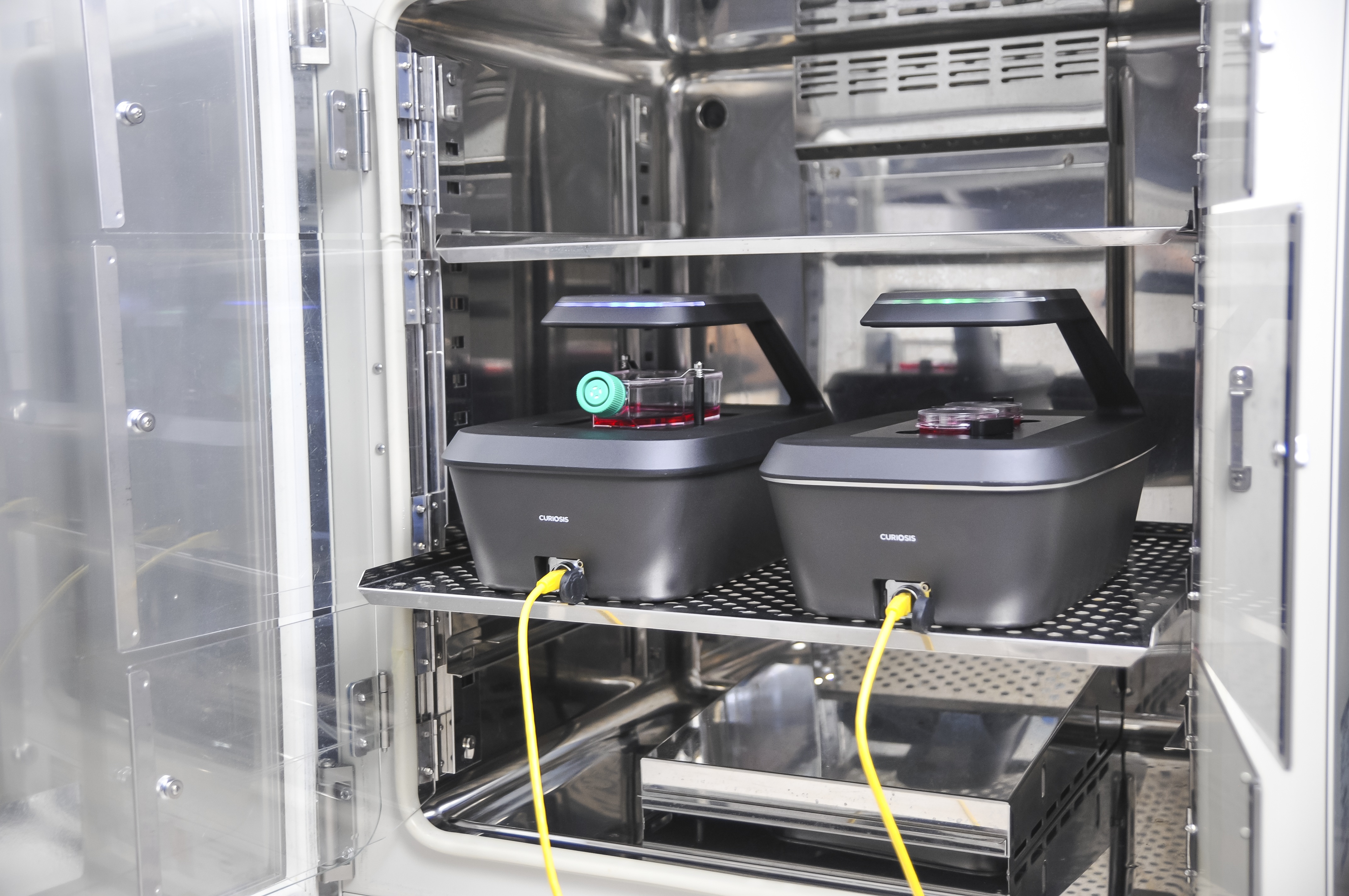

Compact, incubator-compatible design
Small footprint allows placement directly inside standard CO₂ incubators; easy to move and install.
Multi-position imaging
Fully motorized camera supports automated imaging across multiple positions, including full 96-well plates.
Wide vessel compatibility
Compatible with various cell culture vessel formats including plates, flasks, and dishes.
Z-stack imaging
Captures multiple focal planes to analyze 3D structures or thicker samples.
Image stitching
Automatically merges adjacent images for large-area analysis.

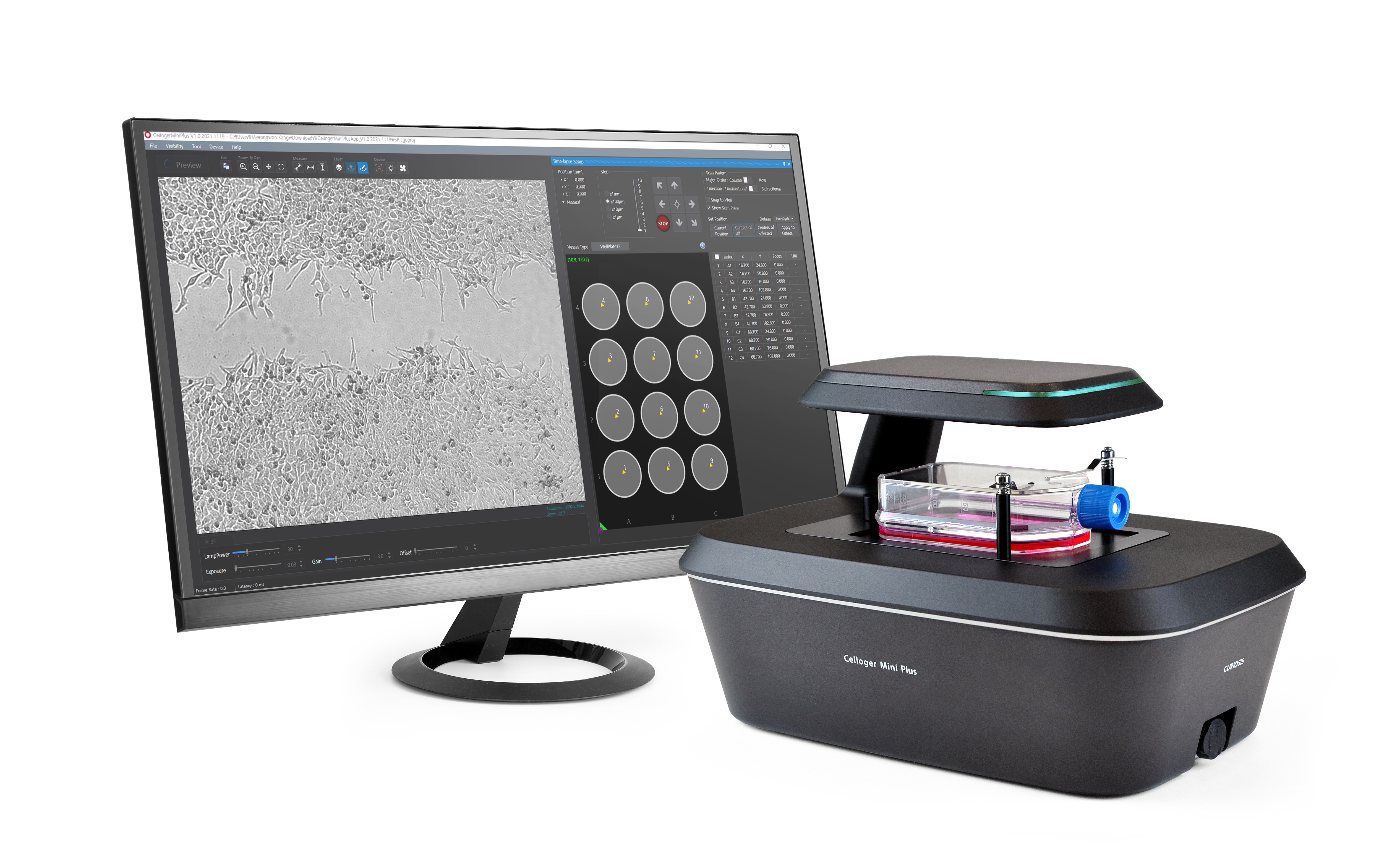

User-friendly analysis tools
Includes built-in functions for confluency analysis, growth curves, measurement tools, and ruler function.
Autofocusing
High-speed and reliable autofocusing ensures consistently sharp images during long-term imaging.
Time-lapse video creation
Easy one-click conversion of captured images into time-lapse videos.

Specifications

Dimension	226 x 358 x 215 mm
Weight	5.6kg / 12.3lb
Objective Lens	4X / 10X
Field of view	2X (2.53 × 1.90 mm) / 4X (1.19 x 0.90 mm) / 10X (0.57 x 0.43 mm)
Imaging modes	Brightfield, Fluorescence(Green / Red)
Fluorescence	Green: Excitation (470/40x) / Emission (510lp) Red: Excitation (525/30x) / Emission (570lp)
Light source	LED
Camera	5MP CMOS

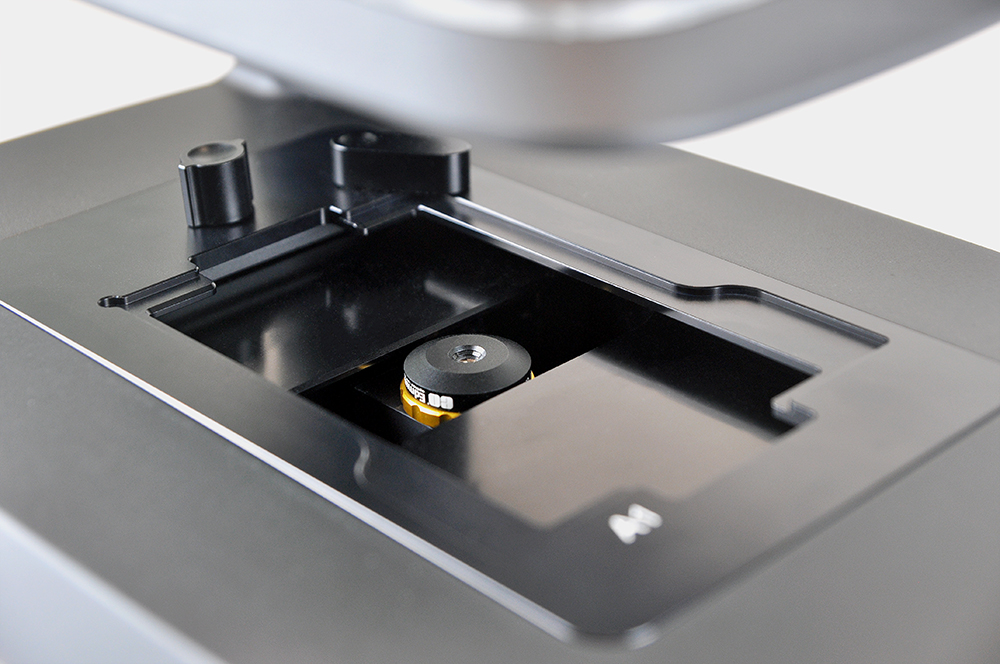

Stage	Motorized XYZ
Imaging positions	Multiple
File export format	TIFF, AVI (JPEG, PNG)
Culture vessels	Flask, dish, well plate, slide
Operating environment	10~40℃, 20~95% humidity
Power requirements	100-240V, ~50/60Hz
