InnoQuant

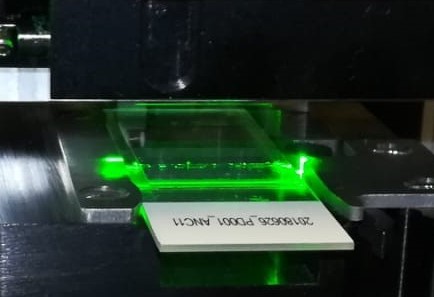

InnoQuant is a next-generation whole slide fluorescence scanner capable of delivering quantitative images with 4 colors simultaneously. Its novel image acquisition process relies on a fast laser scanning across the entire width of your slide, resulting in large-field images with unprecedented uniformity in one pass.
Models within the series:

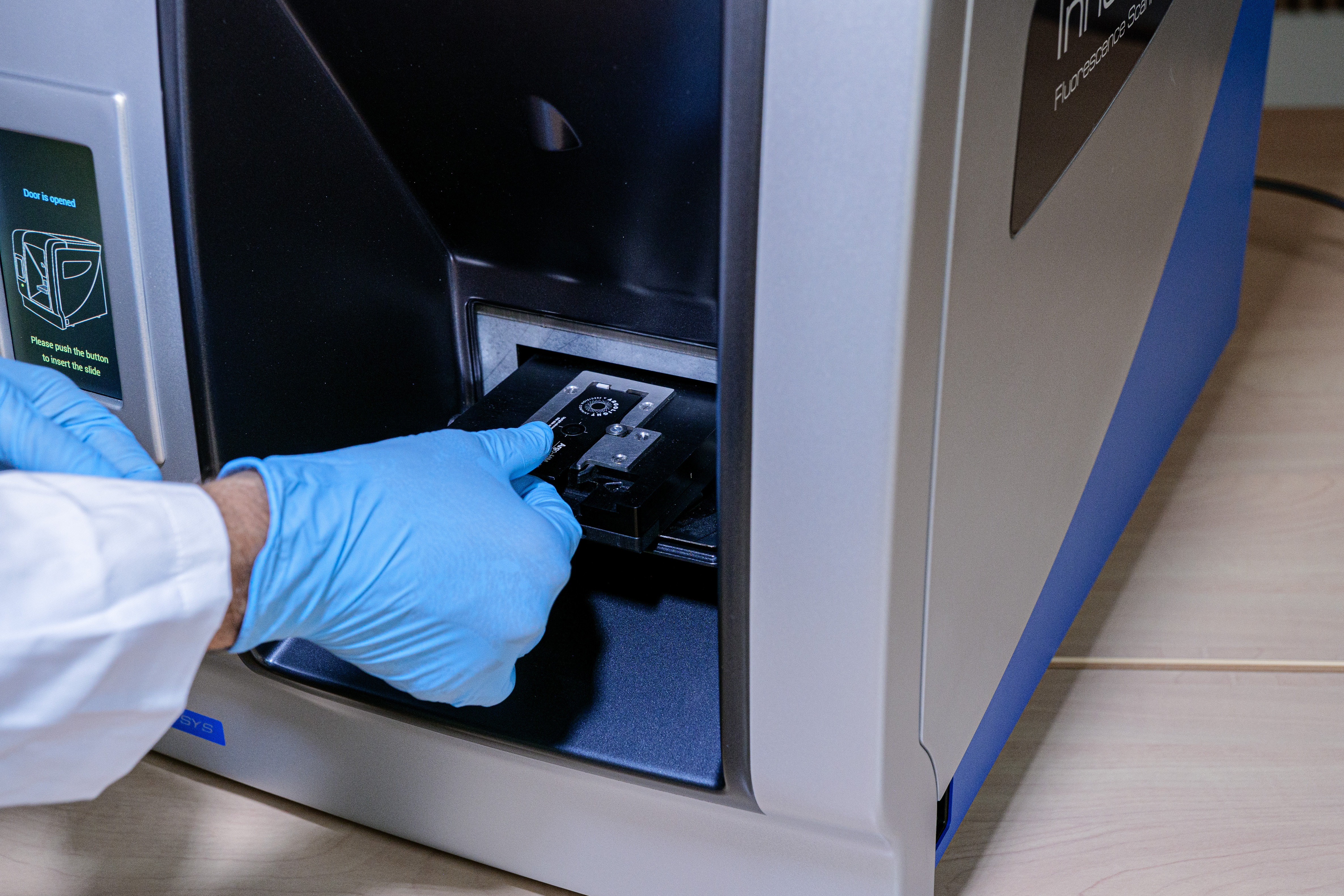

InnoQuant single-slide version: entry-level model to read slides one by one

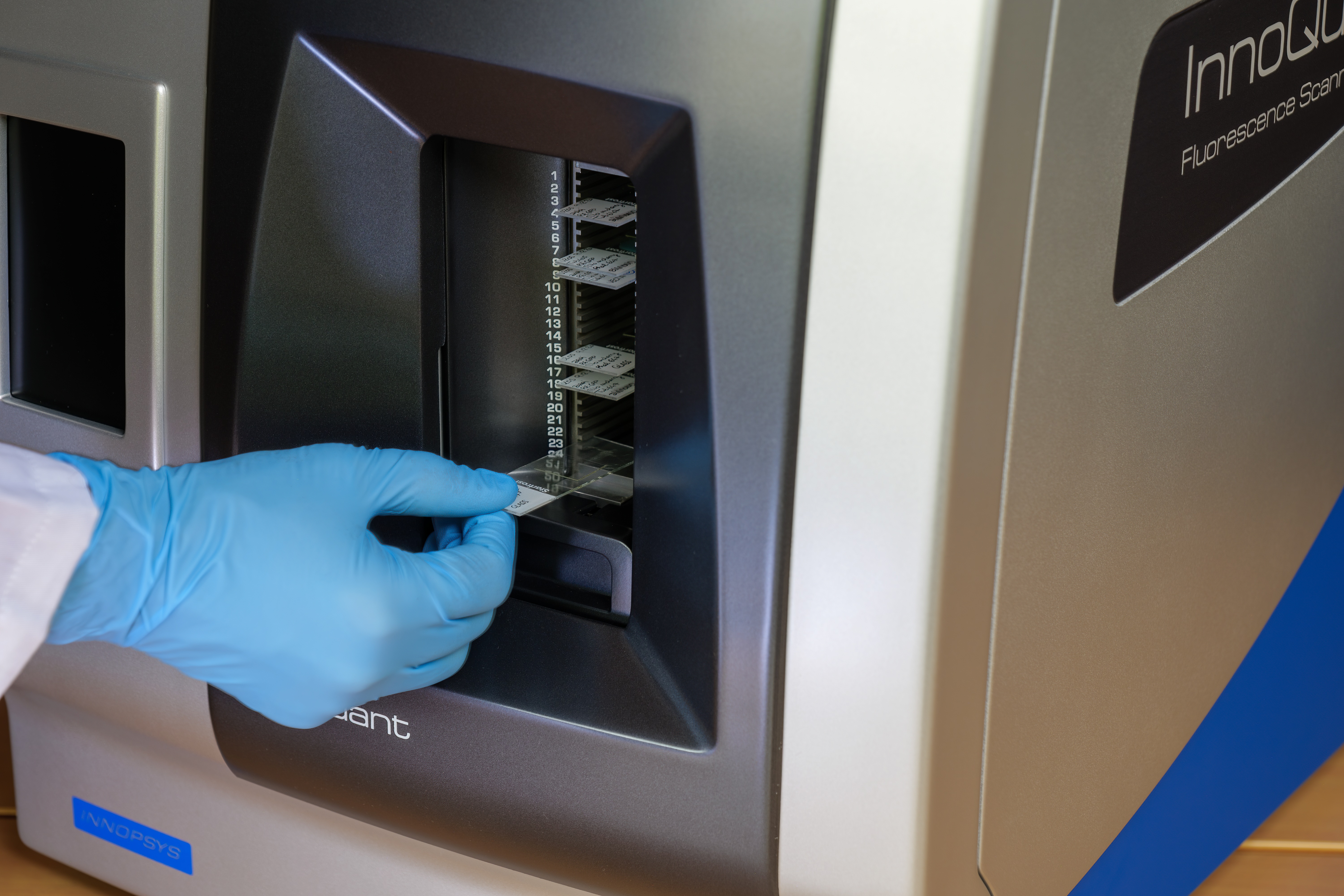

InnoQuant AL: model equipped with a 24-slide loader for higher throughput and batch automation.
Features

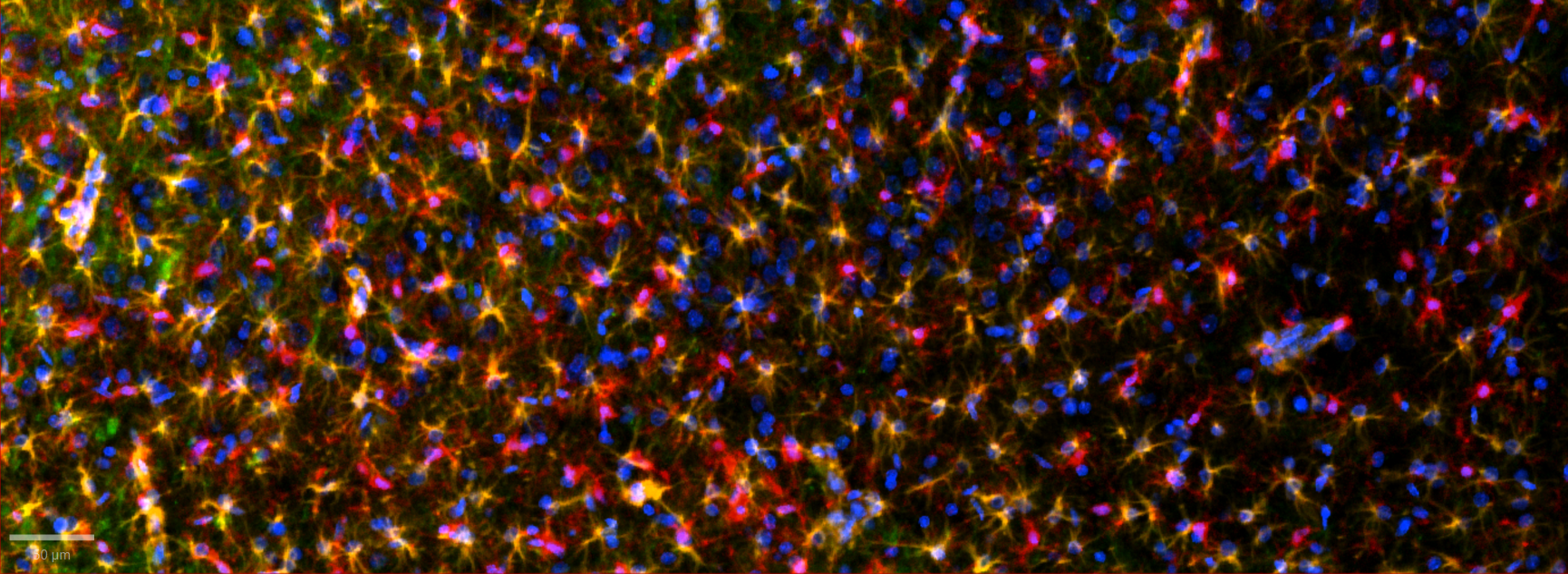

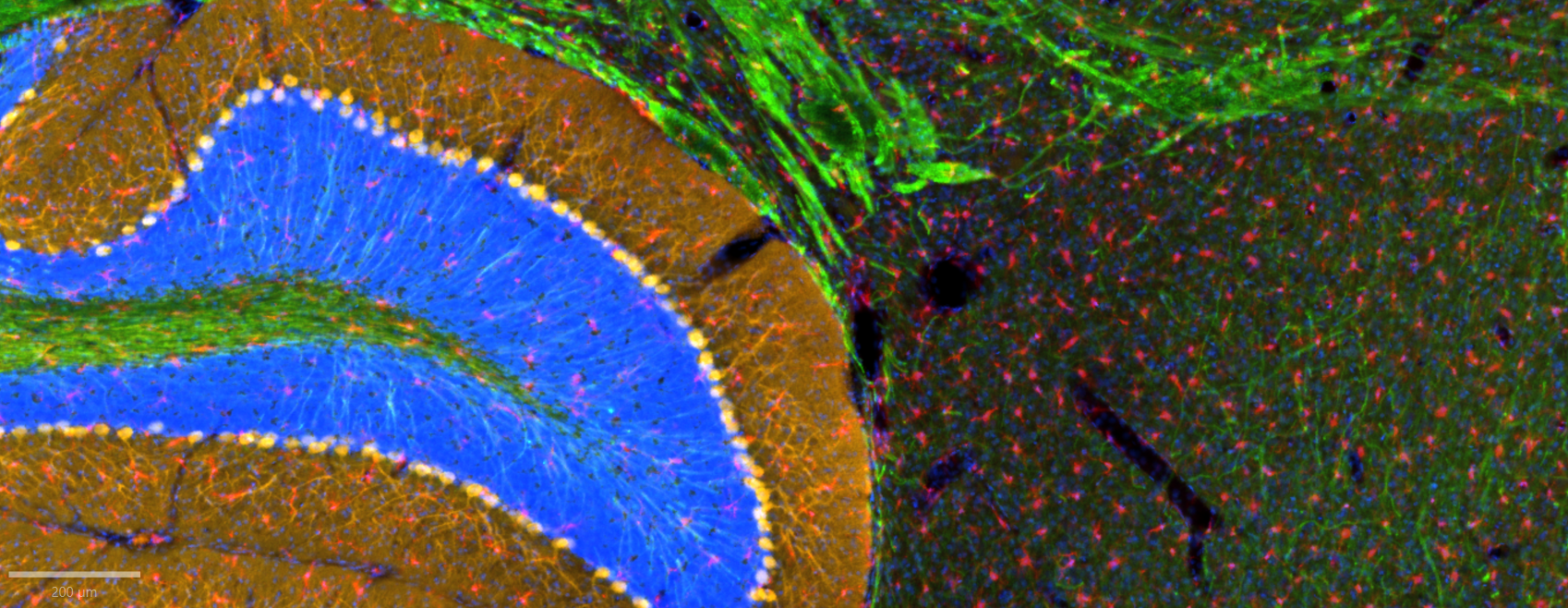

- Simultaneous multiplex fluorescence detection of up to 4 markers on biological samples mounted on standard microscope slides.
- Delivers constant illumination pixel by pixel with no tiling process, resulting in quantitative large-field images with unprecedented uniformity, free from stitching-related bias
- Using the principle of optical sectioning, InnoQuant ensures imaging of both thin and thick samples while eliminating background signal caused by sample thickness, like achieved with confocal microscopy
- Scans quickly and independently of fluorescence intensity, as it operates without exposure time
- Conveniently matches with any image analysis software through the use of a non-proprietary output format
- In-built QC tool to ensure signal intensity measurement reproducibility and repeatability over time.
- Compact footprint and streamlined software
Specifications
- Imaging Technology: 2D fluorescence microscopy
- Laser wavelength: 375nm, 488nm, 560nm, 640nm
- Emission Filters BP440/40, BP513/17, BP593/40, BP680/42, configurable with 6 extra filters per channel
- Pixel size: adjustable from 40µm down to 0.5µm
- Detection: 4 independent PMTs
- Acquisition mode: 4-track simultaneous line scanning
- Focus mode: Fixed, Autofocus and By-content focus. Allows focusing and focus map calculation with no user intervention (with or without coverslip).
- Output Image format: Non-proprietary pyramidal TIFF, 16-bit depth
- Slide dimensions: 26 x 76 mm / 1 x 3 inches
- Scanning speed: 35 lps / typically 10 min for a 10 x 14 mm ROI @0.5µm/pixel, 4 colors.
For more specifications, redirect to the Product Brochure.
Technology
Fluorescence Imaging

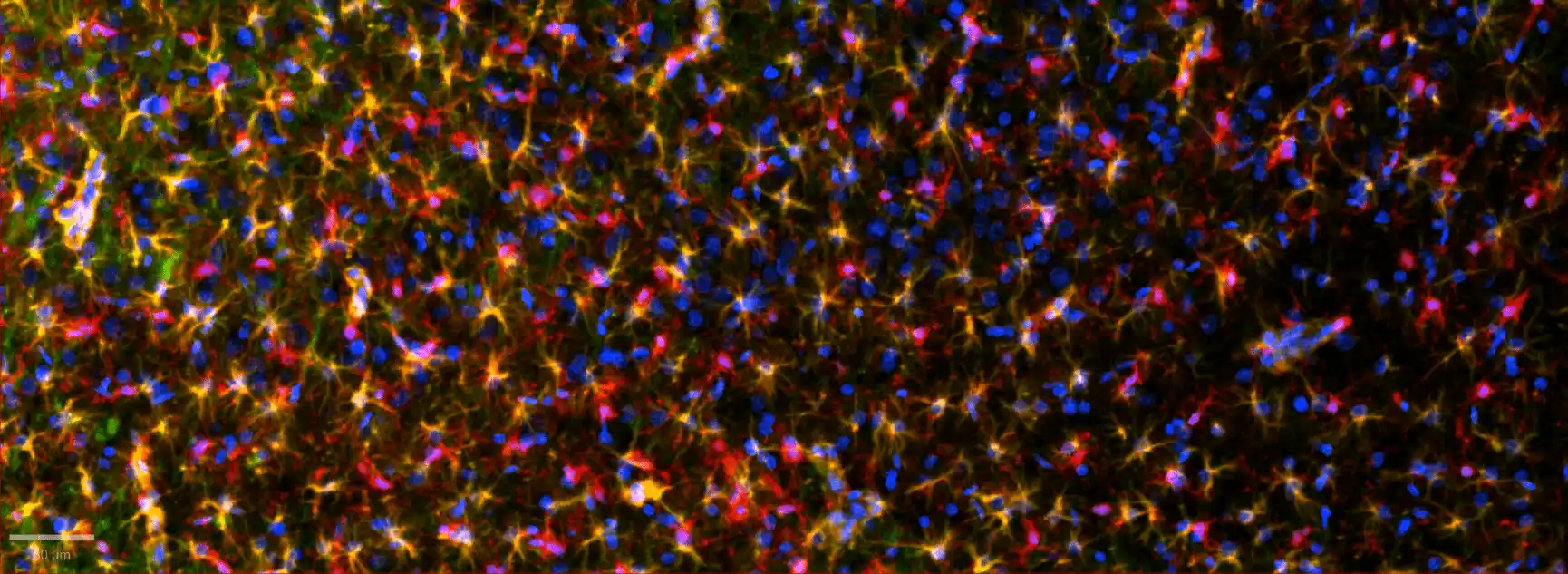

Fluorescence imaging is a widely used technique for visualizing and quantifying biological structures and processes with fluorescently labeled samples. By exciting fluorophores with specific wavelengths of light, researchers can detect emit...
Read More
Documents
Application Note - Tumor Microenvironment analysis in NSCLC using InnoQuant scanner.pdf
PDF • 6,498.09 KB
